2026 Urban Caravans Track

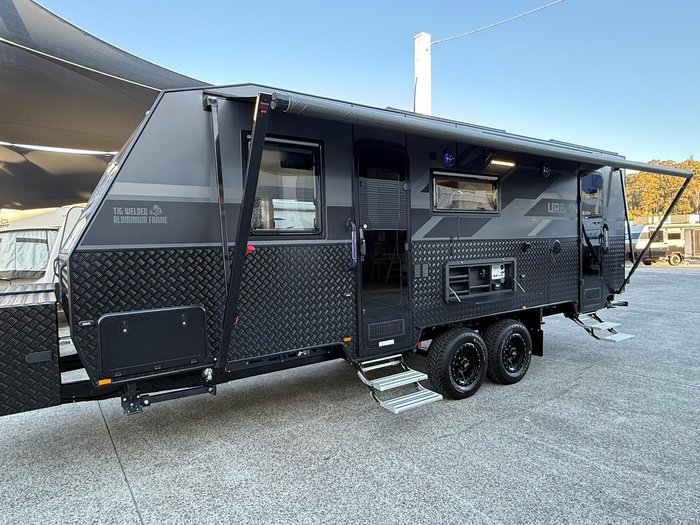

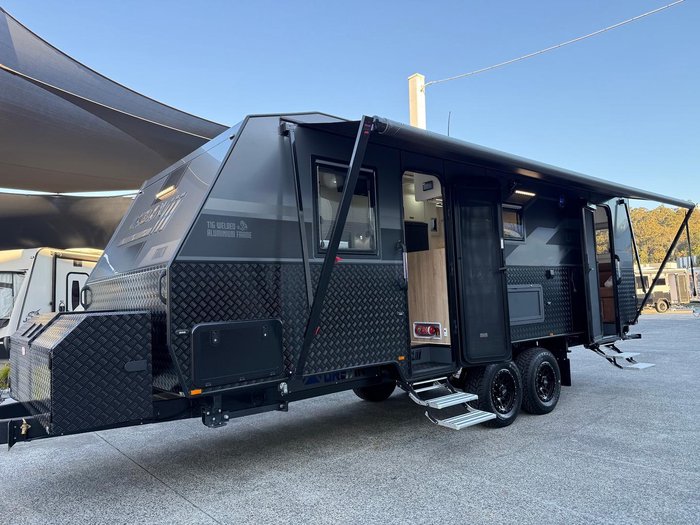

Brand New 2026 Urban Track 23’6 Double-Door Family Bunk Van

This brand-new 2026 Urban Track 23’6 is the ultimate off-road family caravan. Featuring a highly practical double-door bunk layout, an enormous power package, Stage 4 airbag suspension and a massive 1,280kg payload, this van truly has the lot.

Weights:
Tare: 3,104kg
ATM: 4,384kg
Payload: 1,280kg
Empty ball weight: 334kg

Construction and chassis:
Fully TIG-welded aluminium frame
Completely timber-free construction
Full off-road, flat-floor truss chassis
Aluminium chassis inserts
Checker plate raised to 900mm around the entire caravan
Extended A-frame
GripSport bike-rack mounting point
DO45 off-road hitch
Load-rated safety chains
17-inch Dirty Life rims
All-terrain tyres
Stage 4 airbag suspension
Airbag Man airbag suspension
Stage 4 automatic levelling system
EFS shock absorbers
AL-KO braking system
External airbag controls conveniently located inside the picnic-table pantry

Massive off-grid power package:
600Ah of Baintech lithium power
Four 250-watt solar panels
1,000 watts of roof-mounted solar
Victron MultiPlus 3,000-watt inverter
Victron 50-amp MPPT solar regulator
Additional Victron 15-amp MPPT regulator for portable solar panels
Victron 50-amp Orion DC-to-DC charger
Power outlets conveniently located inside the external picnic-table pantry

Water and plumbing:
Two 110-litre freshwater tanks
Additional dedicated 110-litre drinking-water tank
Dedicated drinking-water pump and plumbing
Integrated drinking-water filter and tap
110-litre grey-water tank
Swift Australian-made hot-water system
28-litre stainless-steel hot-water tank
No sacrificial anode required
Three-way kitchen mixer tap with filtered drinking water
Large kitchen sink without a drainer for increased bench space
External gas bayonet

Exterior features:
Double-slide front toolbox
Dedicated generator slide
Dedicated barbecue slide
Gas bottles securely protected inside the toolbox
Full-width tunnel boot
External picnic table with built-in pantry
White-to-amber front anti-bug lighting
Underslung spare wheel
Heavy-duty four-arm rear bar
Reverse camera
Urban 12-volt dust-reduction system
Raised 900mm checker plate protection

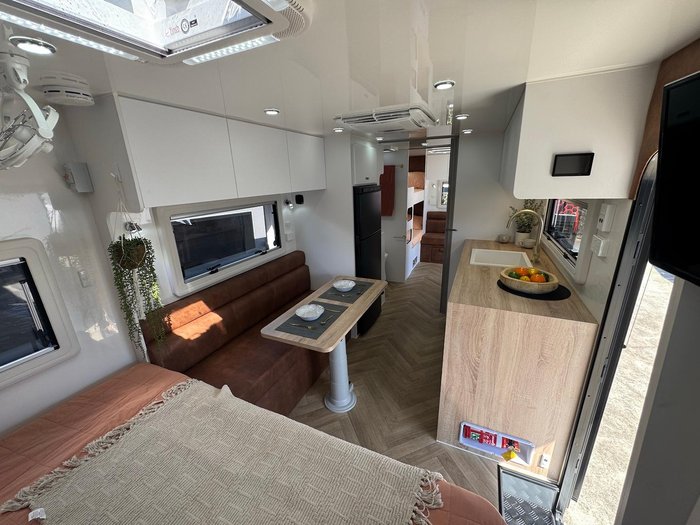

Custom luxury interior:
Upgraded waterfall benchtop
Upgraded matte-white cabinetry
Gold Pack throughout
Gold taps, latches and accessories
White kitchen and bathroom sinks
Internal cooktop deleted to maximise bench space
Portable induction cooking provision
Additional 240-volt power outlets
Dedicated storage flap for the portable induction cooktop
274-litre Thetford compressor fridge
Kemec three-in-one convection oven, microwave and air fryer
Rain-sensing smart roof hatch
Dometic FreshJet Pro air conditioner

Family-friendly double-door layout:
Two separate entry doors
Private front master bedroom
Upgraded double pillow-top king-size mattress
Two Sirocco fans in the main bedroom
Separate rear kids’ room
Rear bunks
Dedicated kids’ lounge
One Sirocco fan in each bunk
Separate shower and toilet
Dual concertina ensuite doors
Dometic ceramic-bowl toilet
NCE front-loading washing machine
3kg washing and 1kg drying capacity

Entertainment:
Two 24-inch smart TVs
Dedicated TV in the rear kids’ room
Fusion Bluetooth sound system
Fusion internal speakers
JBL external speakers
Four Sirocco fans throughout
This is an incredibly capable, fully customised family caravan with premium construction, exceptional comfort and one of the most comprehensive off-grid packages available. With 600Ah of Baintech lithium power, 1,000 watts of solar, Stage 4 automatic-levelling airbag suspension and a huge 1,280kg payload, it is ready for everything from luxury family touring to serious remote-area adventures.
